Dektite & Seldek Roof Flashings

We offer an extensive range of quality flashings to seal any penetration you may have. As the leading brand we ensure all our products are fully tested and approved - you can count on DEKS!

Flashing for Metal Roofs

metal roof ezi BLACK.PNG
metal roof ezi ORANGE.PNG

Dektite® Premium

Perfect for Flashing Pipes on Metal Roofs

The multi-application flashing in a highly durable EPDM or silicone, edged with a flexible aluminium band, flashes hot or cold flues and pipes on metal roofs. The square base fits any prepared hole on most roof profiles.

Fixing kits (FX901 & FX902) are for you mechanically fitting Dektite Flashings to metal roofs. See below which kit you need for each Dektite.

Dektite Premiums can also be used on Plastic, Polycarbonate or Glass Roofs.

Pipe ExternalRoof PitchBase SizeBlack EPDMGrey EPDMRed SiliconeFixing Kit
0-35mm0-45°100 x 100mmDFE100BDFE100GDFE200REFX901
5-55mm0-45°139 x 139mmDFE101BDFE101GDFE201REFX901
5-76mm0-45°178 x 178mmDFE102BDFE102GDFE202REFX901
5-127mm0-45°221 x 221mmDFE103BDFE103GDFE203REFX901
75-175mm0-45°280 x 280mmDFE104BDFE104GDFE204REFX902
100-200mm0-45°310 x 310mmDFE105BDFE105GDFE205REFX902
125-230mm0-45°363 x 363mmDFE106BDFE106GDFE206REFX902
150-300mm0-45°456 x 456mmDFE107BDFE107GDFE207REFX902
170-355mm0-45°496 x 496mmDFE108BDFE108GDFE208REFX902
230-508mm0-45°681 x 681mmDFE109BDFE109GDFE209REFX902

EZi-Seal Comp-01-01.jpg

Dektite® EZi-Seal™

Forget the Silicone - Just screw it down

Features a revolutionary non-absorbent and non-porous sponge gasket that seals by compression, even in wet conditions, it hugs the roof line to provide a watertight seal without the need for silicone sealant.

Fixing kits (FX901 & FX902) are for you mechanically fitting Dektite Flashings to metal roofs. See below which kit you need for each Dektite.

Pipe ExternalRoof PitchBase SizeBlack EPDMFixing Kit
0-35mm0-45°100 x 100mmDFE100BEZFX901
5-55mm0-45°139 x 139mmDFE101BEZFX901
5-76mm0-45°178 x 178mmDFE102BEZFX901
5-127mm0-45°221 x 221mmDFE103BEZFX901
75-175mm0-45°280 x 280mmDFE104BEZFX901
100-200mm0-45°310 x 310mmDFE105BEZFX902
125-230mm0-45°363 x 363mmDFE106BEZFX902
150-300mm0-45°456 x 456mmDFE107BEZFX902
170-355mm0-45°496 x 496mmDFE108BEZFX902
230-508mm0-45°681 x 681mmDFE109BEZFX902

Red Silicone Soaker-01.jpg
Soaker orange.png
( RFS4 )

( RFS4 )

Dektite® Diverter

For Hi/Low Roof Pitches

No ponding or damming! The large base of the Dektite® Diverter dramatically reduces and diverts rain water back up that can occur on very low or high pitched roofs and deep ribbed roofing profiles. No need to cut around pipes, just quick straight lines for the square base.

Two edges of the Dektite Diverter feature our classic Dektite Aluminium strip, whilst the remaining edges are left bare to enable you to cut the width of the flashing to fit your application. Two additional Aluminium strips are supplied to cover the remaining two edges of the flashing, fix with self-tapping screws & silicone.

Pipe rangeRoof PitchBase SizeGrey EPDMRed SiliconeFixing Kit
75-155mm0-60°410 x 360mmDF602DF702FX902
114-254mm0-60°485 x 460mmDF603DF703FX902
254-406mm0-60°708 x 635mmDF605DF705FX902
380-610mm0-60°1006 x 905mmDF606DF706FX902
235-452mm0-40°750 x 660mmRFS4-FX902



Dektite® Combo

Flash over or around

Use as standard Dektite®, or when retrofit is required, cut and fit around pipe and join with clips (supplied).

Pipe ExternalRoof PitchBase SizeBlack EPDMGrey EPDMRed SiliconeFixing Kit
5 - 60mm0-40°139 x 139mmDC101BCDC101GCDC201RECFX901
45 - 85mm0-40°177 x 177mmDC102BCDC102GCDC202RECFX901
5 - 127mm0-40°218 x 218mmDC103BCDC103GCDC203RECFX901
75 - 175mm0-40°285 x 285mmDC104BCDC104GCDC204RECFX901
108 - 190mm0-40°365 x 365mmDC105BCDC105GCDC205RECFX901
125 - 230mm0-40°365 x 365mmDC106BCDC106GCDC206RECFX902
150 - 280mm0-40°454 x 454mmDC107BCDC107GCDC207RECFX902
175 - 330mm0-40°454 x 454mmDC108BCDC108GCDC208RECFX902
240 - 503mm0-40°685 x 685mmDC109BCDC109GCDC209RECFX902
350 - 760mm*995 x 965mmDC110BC-DC210RECFX902

Combo square.JPG

Dektite® Combo Square

Specifically designed for square penetrations from 20mm - 120mm. Suitable for standard or retrofit applications. Clips are included.

Pipe ExternalRoof PitchBase SizeBlack EPDMFixing Kit
20 - 125mm0-45°216 x 216mmDCS103CFX901


Dektite® Retrofit

For repairs and difficult-to-access pipes

Purpose designed for flashing roof penetrations where the flashing cannot be lowered over the pipe, but needs to go around. The unique patented zip lock does not require separate clips - just clamp it together! Also available with a diverter tray.

Pipe ExternalRoof PitchBase Size ØBlack EPDMGrey EPDMRed Silicone
20-70mm0-40°160mmRF801BRF801GRF901REFX901
50-185mm0-40°273mmRF802BRF802GRF902REFX901
85-255mm0-40°369mmRF803BRF803GRF903REFX901
235-425mm0-40°750 x 660mm-RFS4-FX901

Dektite dekstrip-01.jpg

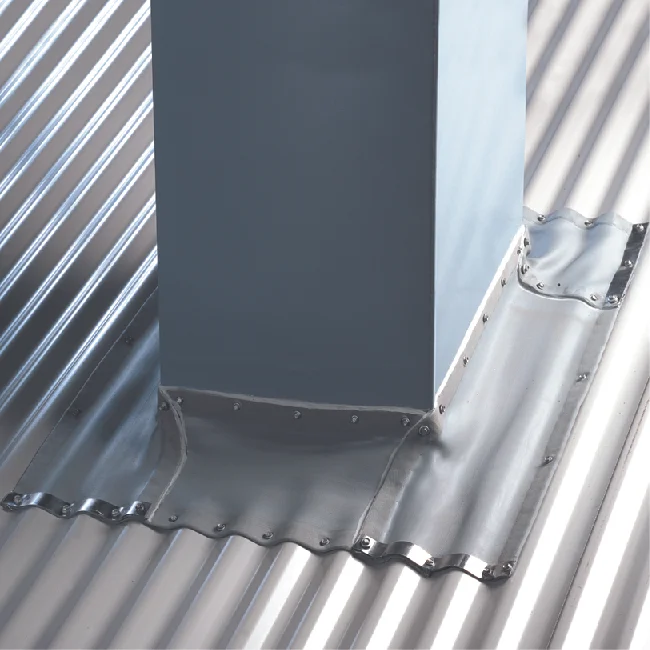

Dekstrip® Flashing

Stretches to any shape, Seals and Stays

The unique and patented internal aluminium strip allows the forming of almost any shape to seal and waterproof. Use with butyl mastic sealant and self-drilling screws to seal pipes, ducts, skylights, chimneys, bullnose and curved roofing profiles.

WidthLengthGrey TPEFixing Kit
180mm23mDS23-1802 x FX902
235mm10mDS10-2351 x FX902
305mm10mDS10-3051 x FX902
450mm15mDS15-4501 x FX902
235mm3mDS3-2351 x FX902

Flatseal Medium.jpg

FlatSeal

Ideal for Flat and Low pitch Roofs with Single Ply or Bitumen Coverings

No special tools or fittings are needed - FlatSealTM EPDM snaps tight to pipe without clips. Seals to roof with hot or cold liquid bitumen - refer to FlatSeal brochure for installation guide. Black EPDM for maximum UV and Ozone resistance.

Pipe ExternalBase Size ØBlack EPDM
25 - 175mm345mmFS25-175

FlatSeal Butyl

Ideal for Flat and Low pitch Roofs with Single Ply or Bitumen Coverings

No special tools or fittings are needed - FlatSeal Butyl snaps tight to pipe without clips. Seals to roof with its self adhesive Butyl base - refer to FlatSeal brochure for installation guide. Made from Black NBR & Butyl.

Pipe ExternalBase Size ØBlack NBR
25 - 175mm345mmFS25-175BU

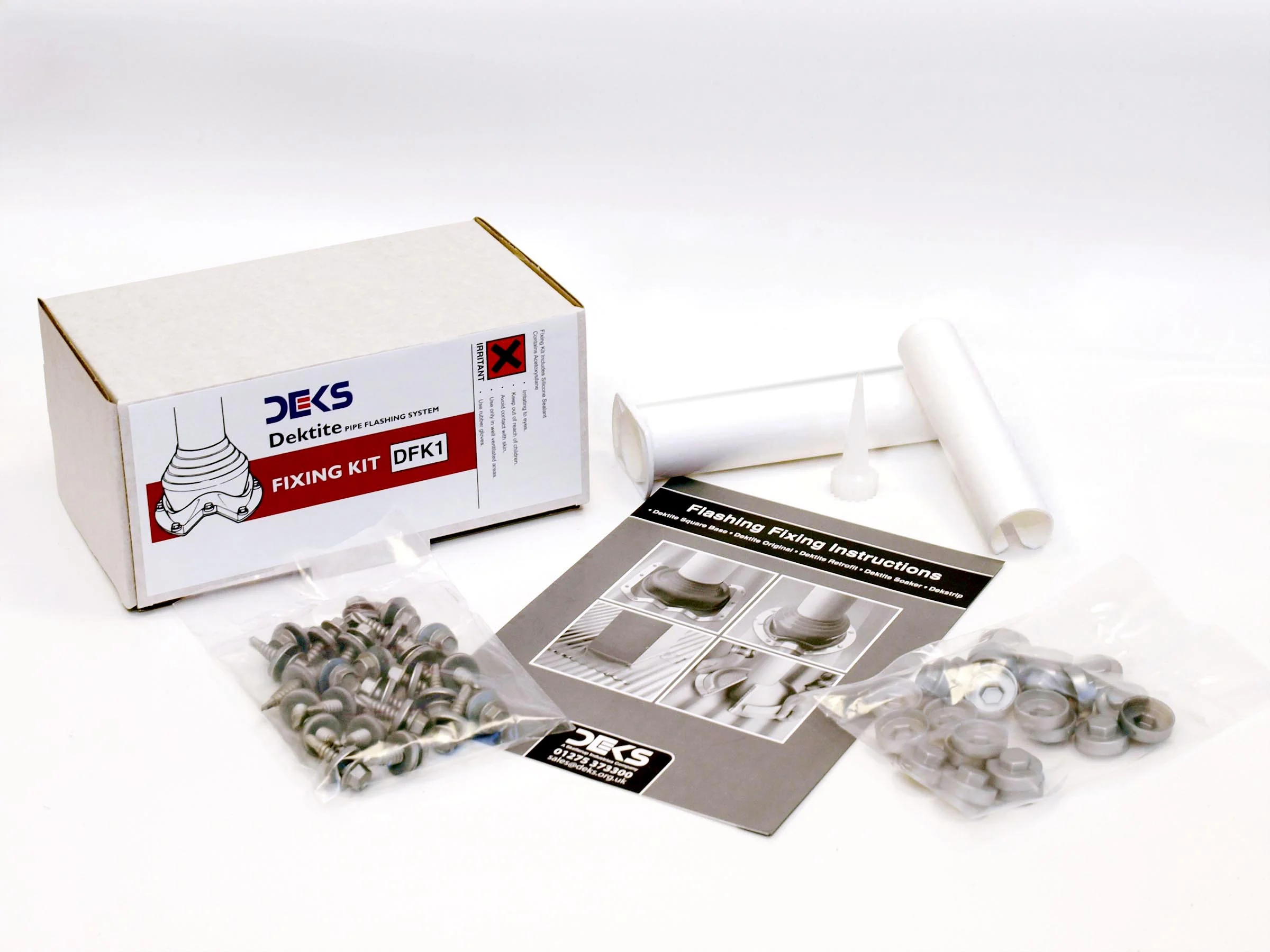

Dektite® Fixing Kits

Dektite® fixing kits are designed for use with Deks EPDM and Silicone flashings on metal roofs.

On the back page of the instruction leaflet is a table which indicates which kit is required for each size of flashing.

CodeContains
FX90125 x Self Drilling Screws + Caps, 1 x 75ml Low Modulus Silicone, 1 x Fixing Instructions
FX90275 x Self Drilling Screws + Caps, 3 x 75ml Low Modulus Silicone, 1 x Fixing Instructions

Dektite® Flashing Adhesive

Dektite® flashing adhesive is a one part Polymer hybrid engineering grade adhesive with primerless adhesion to most substrates and is formulated to adhere Dektite® EPDM & Silicone flashings. The adhesive reacts to atmospheric moisture to produce a long life polymer hybrid rubber joint that is resistant to UV and will remain permanently flexible.

Temperature range: -50°C to +165°C

CodeContains
408059532290ml Grey Adhesive

Flashings for Tile & Slate Roofs

fluestd BLACK flat inside.png

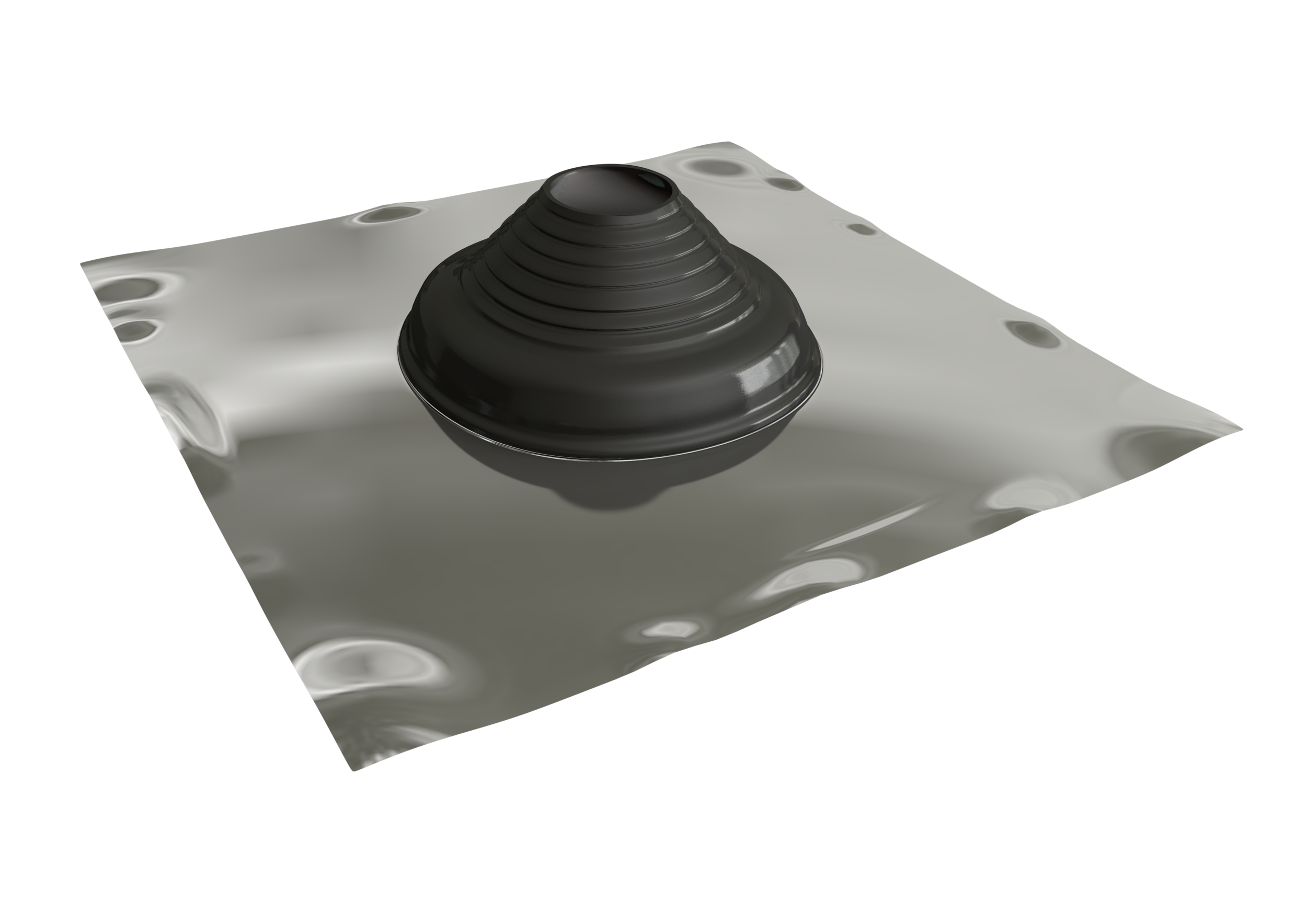

Seldek® Aluminium

Installs in a flash on Tile or Slate Roofs

The Seldek® Aluminium won't stain or corrode roofs and gutters. The EPDM cone, which is trimmed on site to fit, is ingeniously locked to a high grade and malleable 99.9% pure aluminium base. The fast economical way to flash a tile roof.

Pipe ExternalRoof PitchBase SizeBase TypeBlack EPDM
12 - 70mm0-45°500 x 600mmAluminiumSDA100B
50 - 170mm0-45°500 x 600mmAluminiumSDA101B
110 - 200mm0-45°600 x 600mmAluminiumSDA102B
160 - 300mm0-45°764 x 764mmAluminiumSDA103B
300 - 450mm0-45°956 x 956mmAluminiumSDA104B

fluestd GREY flat inside.png

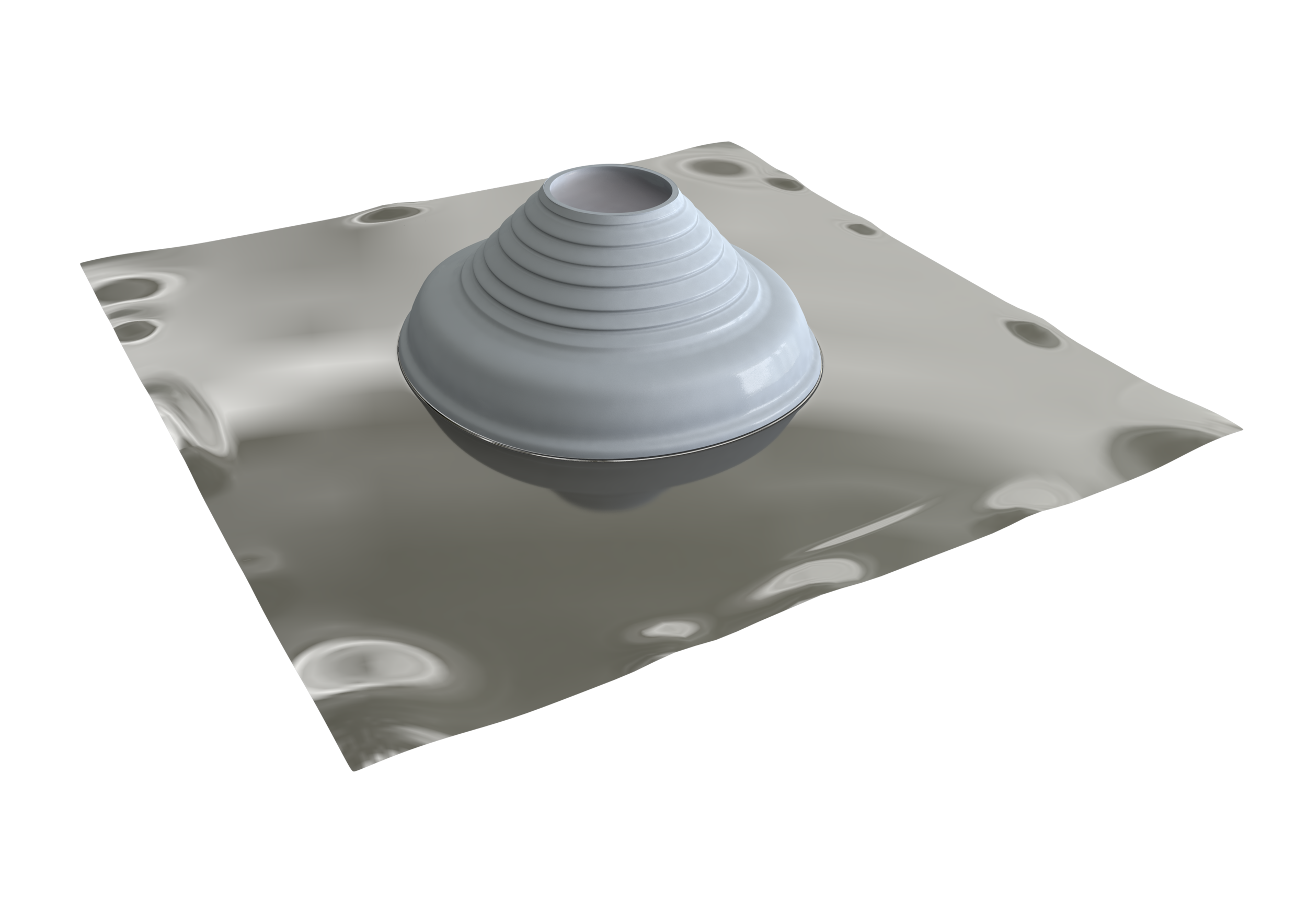

Seldek® Aluminium High Temperature

Installs in a flash on Tile or Slate Roofs

The Seldek® Aluminium won't stain or corrode roofs and gutters. The grey silicone cone will withstand constant temperatures at the roof line of 200°C and up to 250°C intermittently.

Pipe ExternalRoof PitchBase SizeBase TypeGrey Silicone
110 - 200mm0-45°600 x 600mmAluminiumSDA202G
160 - 300mm0-45°764 x 764mmAluminiumSDA203G

fluestd Black Pitched flat inside.png

Seldek® Aluminium Pitched

Installs in a flash on Tile or Slate Roofs

The Seldek® Aluminium won't stain or corrode roofs and gutters. The pitched design allows for a less distorted cone when fitted to steeper pitches.

Pipe ExternalRoof PitchBase SizeBase TypeGrey Silicone
150 - 280mm20-45°764 x 764mmAluminiumSDAP203G
Pipe ExternalRoof PitchBase SizeBase TypeBlack EPDM
150 - 280mm20-45°764 x 764mmAluminiumSDAP103B

Seldek Nu-lead.JPG

Seldek® Nu-Lead®

No more concern about Unprotected Lead

Seldek® Nu-Lead® has been developed for use where the handling of lead and associated environmental issues are of concern. Combines a long-life, weather-resistant EPDM cone with a grey primed acrylic coated lead base. The unique thermo-baked coating does not affect the lead's malleability, and prevents leaching onto the roof and into gutters, downpipes and the water table.

Pipe ExternalRoof PitchBase SizeBase TypeBlack EPDM
12 - 70mm0-45°490 x 410mmNu-LeadDNL101B
50 - 170mm0-45°600 x 450mmNu-LeadDNL103B
175 - 330mm0-45°850 x 550mmNu-LeadDNL108B

Solar Flashings for Tile & Slate Roofs

Duo Solar dek.jpg

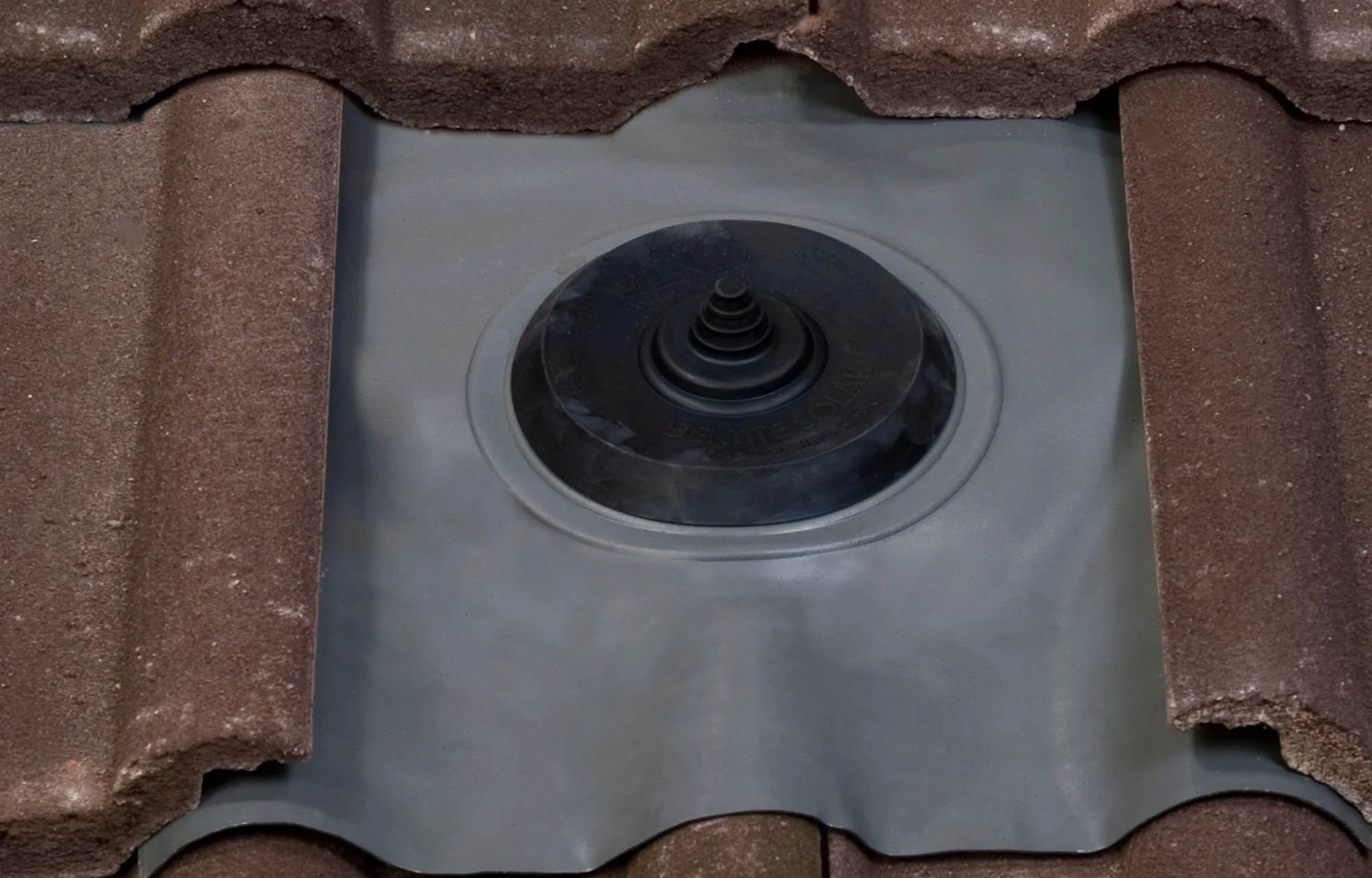

SolarDek™

The speciality Flashing for solar thermal installations

The purpose designed SolarDek™ provides the safest, most efficient method of flashing solar thermal pipes and cables on tile and slate roofs. SolarDek™ features the Nu-Lead® base which will not stain or corrode the roof, together with long-life Dektite® EPDM or grey silicone cone ideally suited to solar thermal pipe sizes.

Pipe ExternalRoof PitchBase SizeBase TypePart No.
0-35mm0-45°490 x 410mmNu-LeadDNL100B
0-35mm0-45°450 x 600mmAluminiumSDAMINI
Pipe ExternalRoof PitchBase SizeBase TypePart No.
0-35mm0-45°490 x 410mmNu-LeadDNLS200G
0-35mm (x2)0-45°490 x 410mmNu-LeadDNLS200GMPG

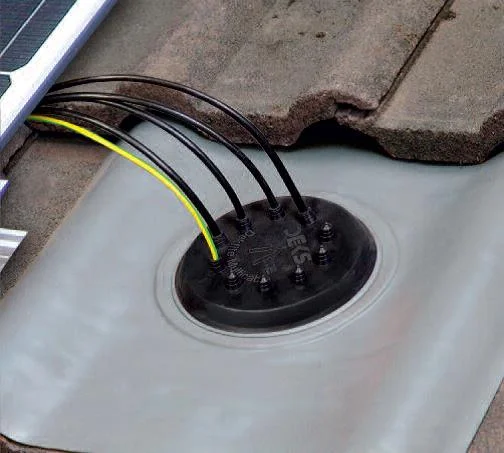

Dektite® Multicable Solar Flashing

The speciality flashing for solar PV cables on tile or slate roofs

Allows up to 10 cables to be taken effectively through any tile or slate roof - Avoids risk of damage or pressure on cables by isolating from tiles or slates and provides a complete weatherproof seal. Black EPDM cone, features Nu-Lead® acrylic coated lead base.

Pipe ExternalRoof PitchBase SizeBase TypePart No.
4-8mmAny490 x 410mmNu-LeadDNLS10MB
4-8mmAny490 x 410mmAluminiumSDA10MB

Solar Flashings for Metal Roofs


Dektite® Premium

Perfect for Flashing Pipes and Cables on Metal Roofs

The multi-application flashing in a highly durable EPDM or silicone, edged with a flexible aluminium band, flashes pipes and cables on metal roofs. The square base fits most roof profiles.

Pipe External Cable External Roof PitchBase SizeRed Silicone CodeGrey EPDM CodeBlack EPDM Code
0-35mm4-8mm0-45°100 x 100mmDFE200RESDFE100GSDFE100BS
5-55mm4-8mm0-45°139 x 139mmDFE201RESDFE101GSDFE101BS

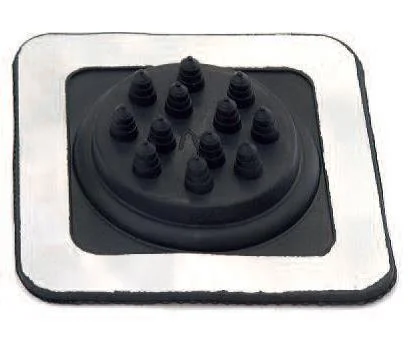

N/A4-8mmAny139 x 139mmN/AN/ADFE101BM
